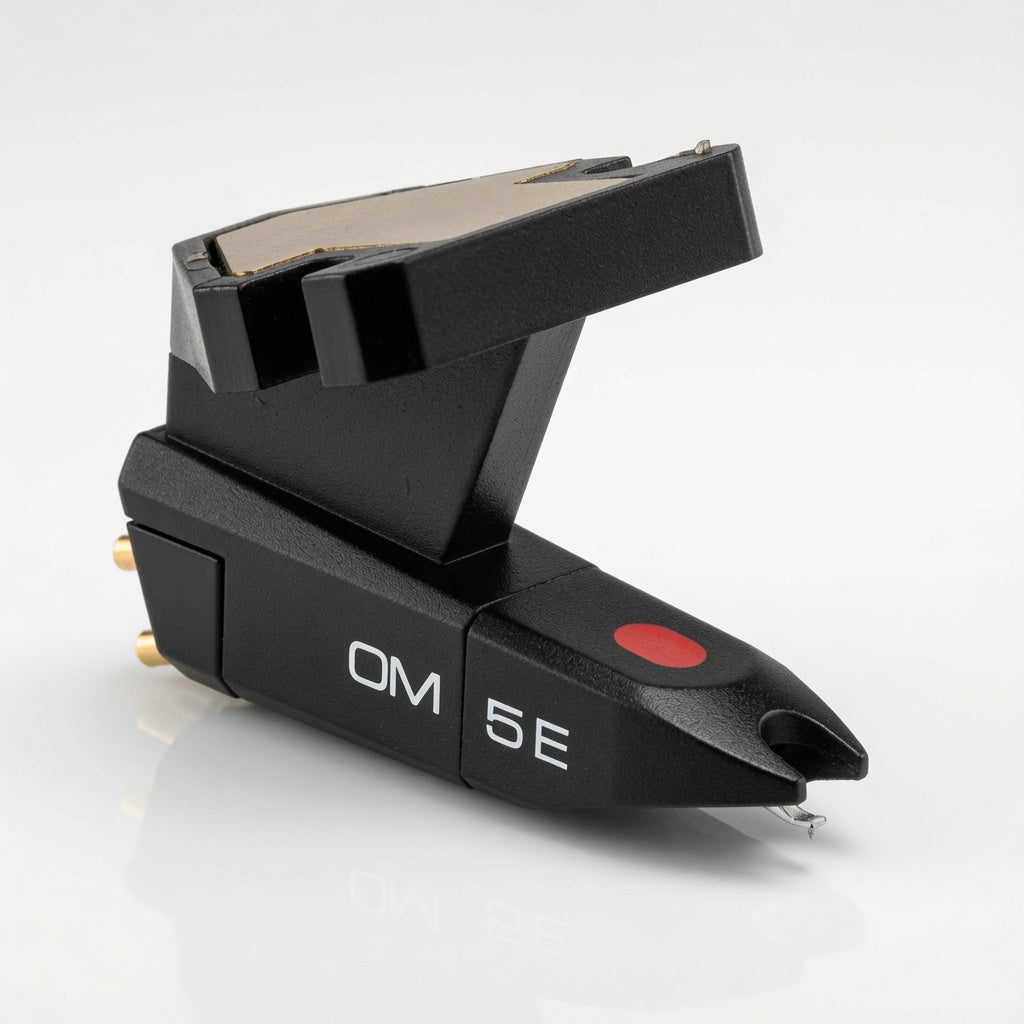

Ortofon OM 5E MM Moving Magnet Cartridge

The Ortofon OM 5E is a clearly positioned entry to mid-range moving magnet (MM) cartridge, part of the classic OM 5 series. It features an elliptical stylus design, offering more precise, lower-distortion vinyl playback than spherical styli while remaining affordable, making it a popular starting point for many music lovers looking to upgrade their sound quality.

Product Information and Design Features

The OM 5E uses a standard half-inch mounting system and comes with a removable weight plate. With the weight plate attached, the total weight is approximately 5g, suitable for standard mass tonearms; when removed, it weighs only 2.5g, perfectly matching low-mass tonearms to ensure optimal tracking stability and sound performance. The cartridge body has a simple design, making installation and alignment easy, and boasts excellent system compatibility, suitable for various tonearms and phono preamps.

Furthermore, the greatest advantage of the OM series is its interchangeable stylus design. Users can significantly improve sound resolution and detail by simply replacing the stylus with a higher-end one (such as Stylus 10, 20, 30, etc.) in the future, without needing to replace the entire cartridge. This offers great upgrade flexibility and long-term value.

Technology and Materials

• Stylus Type: Elliptical diamond, stylus tip radius r/R 8/18 µm
• Tracking Force Range: Recommended 1.8 g (typically applies 1.5–2.0 g)
• Output Voltage: 4 mV (1 kHz, 5 cm/sec)
• Frequency Response: 20–20,000 Hz (±3 dB)
• Channel Separation: 22 dB (1 kHz)
• Channel Balance: 2 dB (1 kHz)
• Tracking Ability: 60 µm (315 Hz)
• Dynamic Compliance: 20 µm/mN
• Internal Impedance: 750 Ω
• Recommended Load: 47 kΩ, capacitance 200–500 pF
• Cartridge Weight: 2.5 g (without weight) / 5 g (with weight)

The elliptical stylus can more accurately track record grooves, effectively reducing distortion and delivering richer detail and better high-frequency extension than spherical styli. The OM 5 series is one of Ortofon's lightest moving magnet cartridge series; its low-mass design helps reduce record wear while improving tracking accuracy.

Sound Performance

The OM 5E's sound signature leans towards neutral and balanced, with solid, powerful bass, natural and clear midrange, and bright yet non-fatiguing treble. The overall listening experience is pleasantly warm, rich in detail, and has good dynamic response, clearly presenting the layers and emotions in music. Whether it's vocals, strings, jazz, or pop music, it delivers vivid and musical performance, making it an excellent entry-level choice that combines resolution and listenability.

User Reviews

Many users highly praise the OM 5E, calling it a "giant killer that performs exceptionally well for its price." Reviews note its "neutral and balanced sound, rich detail, bringing old records back to life"; some users also commend its "excellent tracking ability, low distortion, warm yet clear sound, and natural, airy high frequencies." Among many entry-level cartridges, the OM 5E is often regarded as a highly cost-effective choice worthy of long-term use.

The Ortofon OM 5E is suitable for users who want significantly better performance than basic spherical styli within a reasonable budget. Whether it's for first-time high-quality vinyl system users or as an upgrade to an existing system, it delivers a satisfying listening experience and leaves ample room for future upgrades.
