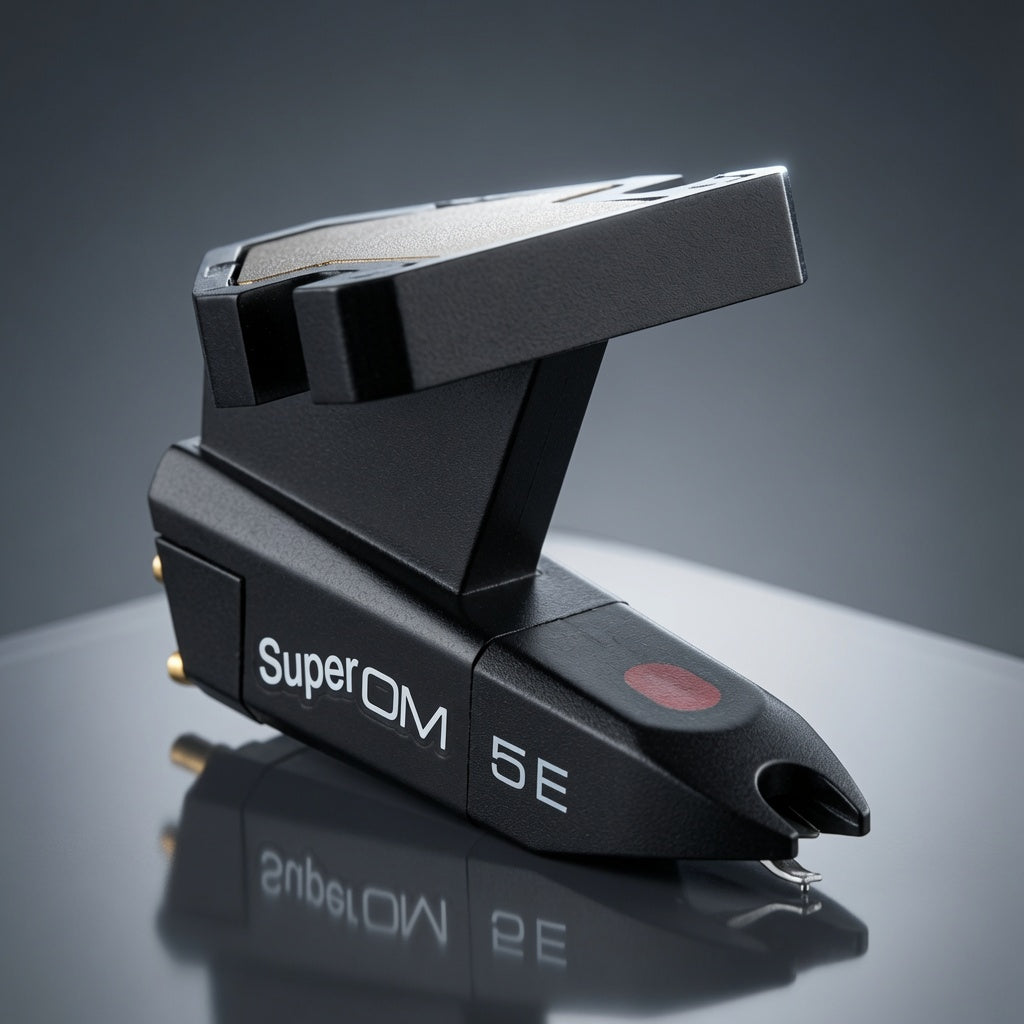

Ortofon Super OM 5E MM Moving Magnet Cartridge

The Ortofon Super OM 5E is a high-end version within the OM 5 series, designed for music lovers who seek greater precision, lower distortion, and richer details. It incorporates multiple technical enhancements over the standard OM 5E, offering superior linearity, higher channel separation, and more extended high-frequency response. It is a highly competitive moving magnet cartridge for entry to mid-level systems.

Product Information and Design Features

The Super OM 5E features a standard half-inch mounting design and comes with a detachable weight plate. With the weight plate attached, the total weight is approximately 5g, suitable for standard tonearms. When removed, it weighs only 2.5g, perfectly matching low-mass tonearms and ensuring optimal tracking stability. The cartridge body is meticulously designed for easy installation and alignment, and boasts excellent system compatibility.

Like the entire OM series, the Super OM 5E supports interchangeable styli. Users can upgrade to higher-grade styli (such as Stylus 10, 20, 30, etc.) in the future to further enhance sound performance without needing to replace the entire cartridge, offering high long-term value.

Technology and Materials

• Stylus type: Elliptical diamond stylus, stylus tip radius r/R 8/18 µm
• Tracking force range: 1.5–2.0 g, recommended tracking force 1.75 g
• Output voltage: 4 mV (1 kHz, 5 cm/sec)
• Frequency response: 20–22,000 Hz
• Channel separation: 22 dB (1 kHz)
• Channel balance: 1.5 dB (1 kHz)
• Tracking ability: 60 µm (315 Hz)
• Dynamic compliance: 20 µm/mN
• Internal impedance: 1 kΩ
• Internal inductance: 580 mH
• Recommended load: 47 kΩ, capacitance 200–500 pF
• Cartridge weight: 2.5 g (without weight) / 5 g (with weight)

Key technological advancements of the Super OM 5E include:

• Precision positioning of the system's natural fulcrum through computer simulation, achieving superior linearity, higher channel separation, and lower distortion.
• Utilizes Split Pole Pins technology, effectively reducing magnetic loss at the high-frequency end, extending frequency response, and improving phase linearity.
• The cartridge body is made from Noryl (a plastic and glass composite material), offering high rigidity and low resonance characteristics to effectively suppress unwanted vibrations.

These technical improvements enable the Super OM 5E to significantly outperform the standard OM 5E in sound performance, approaching the level of higher-end cartridges.

Sound Performance

The Super OM 5E delivers a clear, balanced, and layered sound. The bass is firmer and fuller, the midrange is natural and transparent, and the high-frequency extension is more open and airy. The improved channel separation provides a wider soundstage and more precise imaging. Even in complex musical passages, it maintains low distortion and excellent tracking performance. The overall listening experience is delicate, lively, and musical, fully revealing the details and emotions within vinyl records.

User Reviews

Users and professional reviewers generally give the Super OM 5E positive feedback, noting its "excellent clarity across the entire frequency range, outstanding channel separation, and a wide, immersive soundstage." Some reviews highlight its "richer bass, crystal-clear highs, and natural midrange, maintaining low distortion even in high-density arrangements," and praise it for "offering performance close to higher-end cartridges at an affordable price, making it an extremely cost-effective choice." Many users also appreciate its lightweight design and the flexibility of upgradable styli, considering it a highly worthwhile upgrade for both entry-level and advanced systems.

The Ortofon Super OM 5E is suitable for users who wish to achieve more precise, lower-distortion, and richer detailed sound performance within a reasonable budget. Whether as an upgrade to an existing system or for building a high-quality entry-level vinyl system, it delivers a satisfying and long-term potential listening experience.
